Dosing Pump

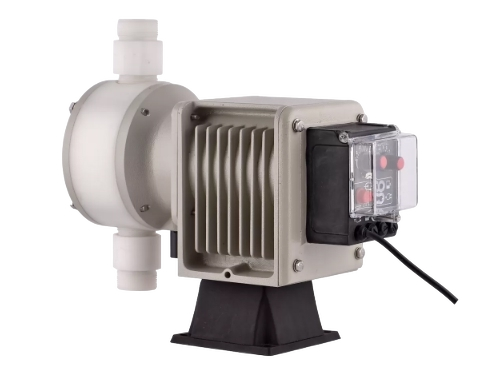

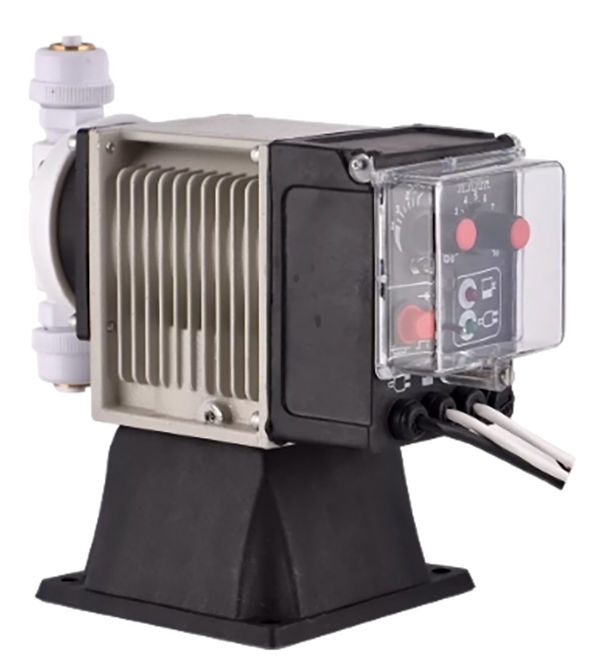

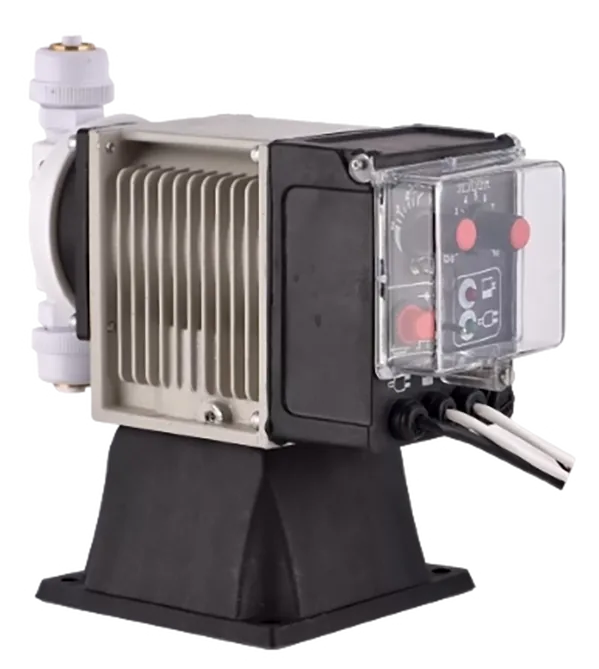

Toshcon Dosing Pump
TOSHCON JESCO (INDIA) PVT. LTD. offers solenoid-operated electronic diaphragm dosing pumps. These magnetic dosing pumps are glandless diaphragm pumps powered by an electromagnetic drive. The primary advantage of the magnetic drive is its excellent proportional control capabilities. We take pride in the fact that Quasys Inc. are authorized dealer for Toshcon Dosing Pump. Manufactured using modern production techniques, these pumps are built with high-quality materials. Carefully selected premium components are utilized in the controls to ensure reliable performance. When installed and operated properly, the pumps are maintenance-free and service-free.
Key Features & Benefits
- Separation Chamber
- Changeover Function for external control using 0/4...20 mA standard signal
- Connection for Level Control with alarm signalling
- Stroke Length adjustable from 0...100%
- Stroke Frequency adjustable from 0...100% per minute
- Double Ball Valves for enhanced accuracy
- Operates within a spectral range of 200 nm to 750 nm, with built-in color and turbidity compensation.
Inputs
- Select any two Sensor (Digital / Analog / ISE)
- pH – Analog, Digital
- Chlorine Sensor – Potentiometric / ISE
- Conductivity/Total Dissolved solids – Analog / Digital
- Dissolved Oxygen – Optical (Digital Type)
- Turbidity – Optical (Digital Type)
- Sludge Level – Optical (Digital Type)
- UV – VIS Sensor – Any one – COD, BOD, TOC, TSS, Nitrate, Nitrite, Color
- Ion Selective Electrode – Analog
- Total Suspended solids – IR Based
Outputs
- 2 x 4-20mA active output (load of 500 ohm max)
| Model TJ – MD |
8 | 12 | 20 | 40 | 100 |
|---|---|---|---|---|---|
| Maximum Pressure (Bar) | 10 | 4 | 10 | 4 | 1.5 |
| Litre / Hr. At max. Pressure |
6 | 12 | 15.5 | 46 | 90 |
| Stroke / min | 100 | 100 | 70 | 70 | 70 |
| ml / Stroke | 1 | 2 | 4.3 | 12.8 | 25 |
| Power (W) | 30 | 30 | 70 | 70 | 70 |
| Approx. weight (kg) | 5 | 5 | 10 | 14 | 14 |
| MOC of wetted pumps — Standard: PP | Optional: PVC / SC / TEFLON | |||||
SEKO Dosing Pumps
EKO dosing pumps are precision-engineered devices designed to dispense precise quantities of liquids, whether chemicals, additives, or other fluids, maintaining a consistent flow rate. Manufactured by SEKO, a renowned global leader in dosing solutions, these pumps are celebrated for their high accuracy, efficiency, and dependable performance. We take pride in the fact that Quasys Inc. is an authorized dealer for SEKO Dosing Pump.
Types of SEKO Dosing Pumps
SEKO offers several types of dosing pumps depending on the application:
- Electromagnetic Dosing Pumps: These pumps use electromagnetic technology to move fluids. They’re very precise and often used in water treatment or industrial applications where accurate dosing is crucial.
- Motor-Driven Dosing Pumps: These pumps are driven by an electric motor and offer adjustable flow rates, providing flexibility for different applications. They’re often used in chemical processing.
- Peristaltic Dosing Pumps: Peristaltic pumps use a rotating mechanism to push fluid through flexible tubing. They're ideal for applications where contamination must be avoided, as the liquid doesn’t come into contact with the pump mechanism.
- Hydraulic Dosing Pumps: These pumps are powered by hydraulic energy and are used in higher-pressure applications where electromagnetic or motor-driven pumps may not be suitable.
Key Features of SEKO Dosing Pumps
SEKO dosing pumps are known for delivering accurate and consistent amounts of chemicals or fluids, even in challenging environments.
You can easily adjust the flow rate to meet specific application requirements, whether you need to dose a small or large volume.
SEKO pumps are typically made from materials like PVDF, PTFE, and stainless steel, ensuring durability and resistance to harsh chemicals.
These pumps are designed to be space-saving and reliable, minimizing maintenance and downtime.
Key Features of SEKO Dosing Pumps
| Model | Flow Rate [l/h] |
Pressure [bar] |
Stroke Capacity [cc/stroke] |
Ø IN/OUT Conn. [mm] |
Frequency Max [stroke/min] |
|---|---|---|---|---|---|
| Model 600 | 2.5 | 20 | 0.35 | 4 – 6 / 4 – 7 | 120 |
| 3 | 18 | 0.42 | |||
| 4.2 | 14 | 0.58 | |||
| Model 603 | 3 | 8 | 0.97 | 4 - 6 | 160 |
| 4 | 12 | 0.42 | |||
| 5 | 10 | 0.52 | |||
| 8 | 8 | 0.63 | |||
| Model 800 | 8 | 2 | 0.83 | 4 - 6 | 300 |
| 7 | 16 | 0.38 | |||
| 10 | 10 | 0.55 | |||
| Model 803 | 15 | 5 | 0.83 | 8 – 12” | 300 |
| 18 | 1 | 1.00 | |||
| 20 | 5 | 1.11 | |||
| 32 | 4 | 1.78 |
